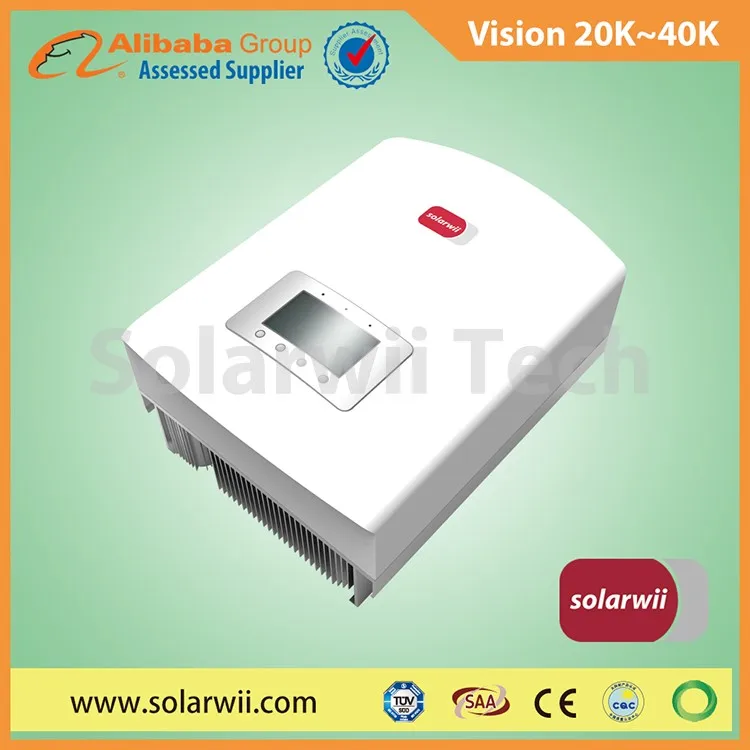

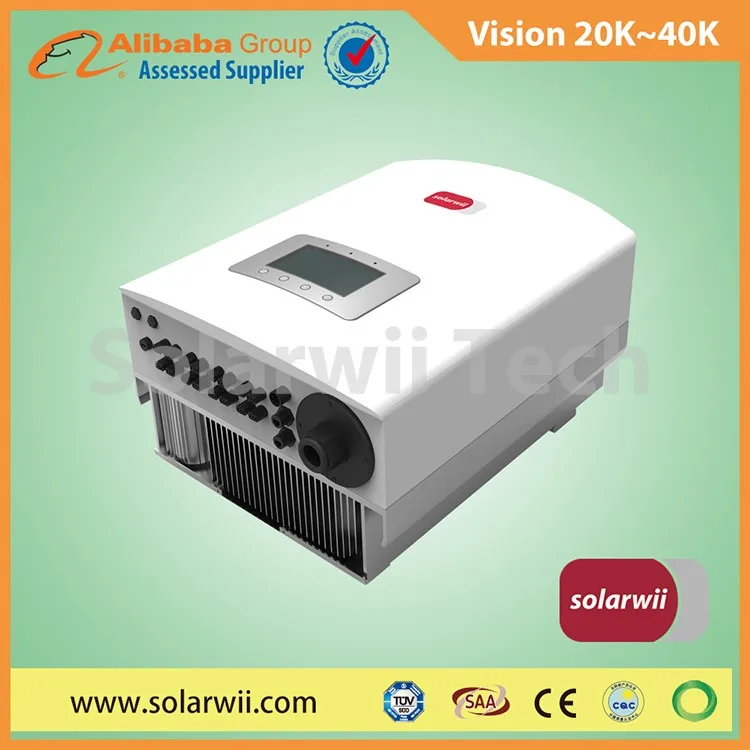

Solarwii 20kW~40kW Vision Series grid tie inverter

FOB Reference Price:Get Latest Price
US $1,800-5,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
3000 Piece/Pieces per Month
Port:
Shanghai Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Solarwii
Model Number:
Solarwii Vision 20-40K
Specification:
Normal
Application:
Industrial
Output Voltage (V):
220V/230V/240V
Load Power (W):
Depands
Solar Power (W):
20-40KW
Work Time (h):
24 Hours
Color:
White
Packaging & Delivery
Packaging Details
Well protected carton with pallet
Delivery Time
10 working days after payment

Solarwii 20kW~40kW Vision Series grid tie inverter





Product Description



 Solarwii 20kW~40kW Vision Series grid tie inverter

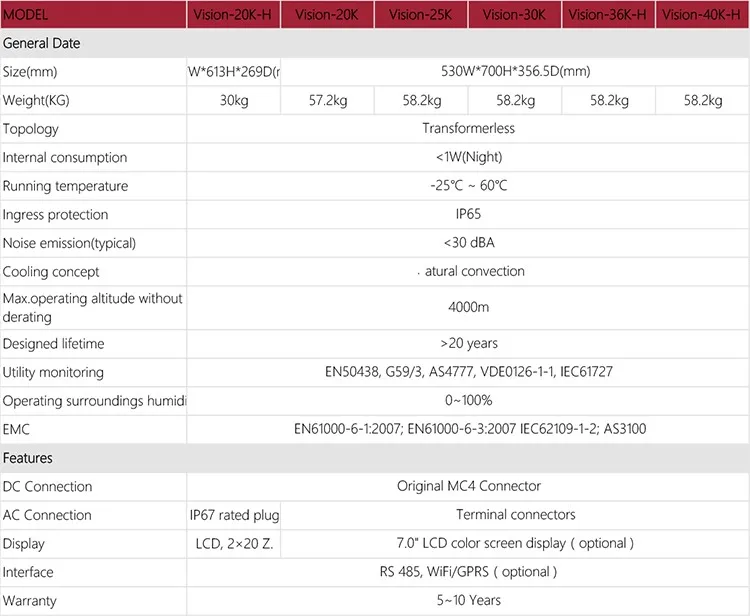

MODELVision-20K-HVision-20KVision-25KVision-30KVision-36K-HVision-40K-H
Energy SourcePV
Input Side(DC)
Max. input power(KW)20kW23kW28kW34kW41kW45kW
Max. DC input voltage(V)1000V
Start-up DC  input voltage(V)330V350V
MPPT operating range(V)200-800V
Max. DC input current(A)18A+18A18A+18A+18A+18A
Number of MPPT/Max strings per MPPT2/44/8
Output Side(AC)
Rated output power(KW)20kW20kW25kW30kW36kW40kW
Max. transient power(KW)20kW20kW25kW30kW36kW40kW
Rated AC grid voltage(V)400V400V380/400V380/400V480V480V
AC grid voltage range(A)384~576V (adjustable)304~460V(adjustable)384~576V(adjustable)
Operating phaseThree
Max. AC output current(A)25A
Reactive Power Control settings0.8 leading…0.8 lagging
Grid current THD<3%
DC injection current(mA)<50mA
Rated grid frequency(Hz)50/60Hz
Operating range utility frequency(Hz)47-52Hz or 57-62Hz(adjustable)
Efficiency
Max. efficiency98.3%98.6%98.6%98.6%98.6%98.6%
Euro efficiency97.5%98.3%98.3%98.3%98.3%98.3%
MPPT efficiency99.9%99.9%99.9%99.9%99.9%99.9%
Protection
DC reverse-polarity protectionYes
AC short circuit protectionYes
AC output overcurrent protectionYes
Output overvoltage protection-varistorYes
Insulation resistance protectionYes
ground fault monitoringYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
integrated DC switchOptional







Company Information











Certifications
Packaging & Shipping




FAQ


1,Can I know how to choose the models?



First,you can read the DATA SHEET in the page of each products, if it is not okay;

Then, you can download our Products Catelog;

Of course, if you are interested in our product, you can Inquire Us directly for any techique questions!



2,If you can accept my own payment ways?



First, if the order less than 1 KW, We Only accept 100%TT or Paypal; But you need to pay the transfer fee;

Second, if the order bigger than 1 MW, we can talk about the payment terms;

For the others, just like the payment terms we list.
