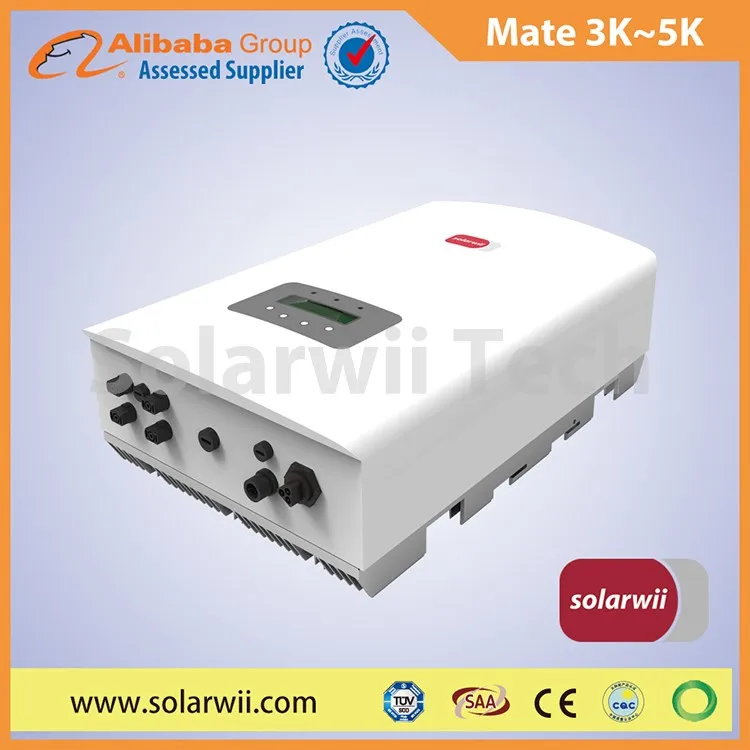

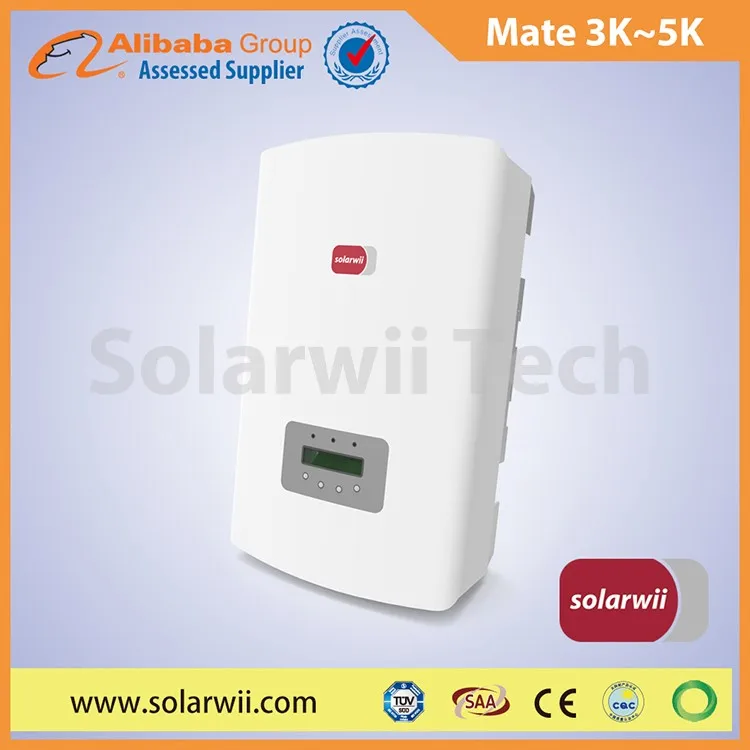

Solarwii 3kW~5kW Mate Series grid tie inverter

FOB Reference Price:Get Latest Price
US $500-1,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
3000 Piece/Pieces per Month
Port:
Shanghai Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Solarwii
Model Number:
Solarwii Mate 3-5K
Specification:
Normal
Application:
Home
Output Voltage (V):
220V/230V/240V
Load Power (W):
Depands
Solar Power (W):
3KW~5KW
Work Time (h):
24 Hours
Color:
White
Packaging & Delivery
Packaging Details
Well protected carton with pallet
Delivery Time
10 working days after payment



Solarwii 3kW~5kW Mate Series grid tie inverter



Product Description



Solarwii 3kW~5kW Mate Series grid tie inverter

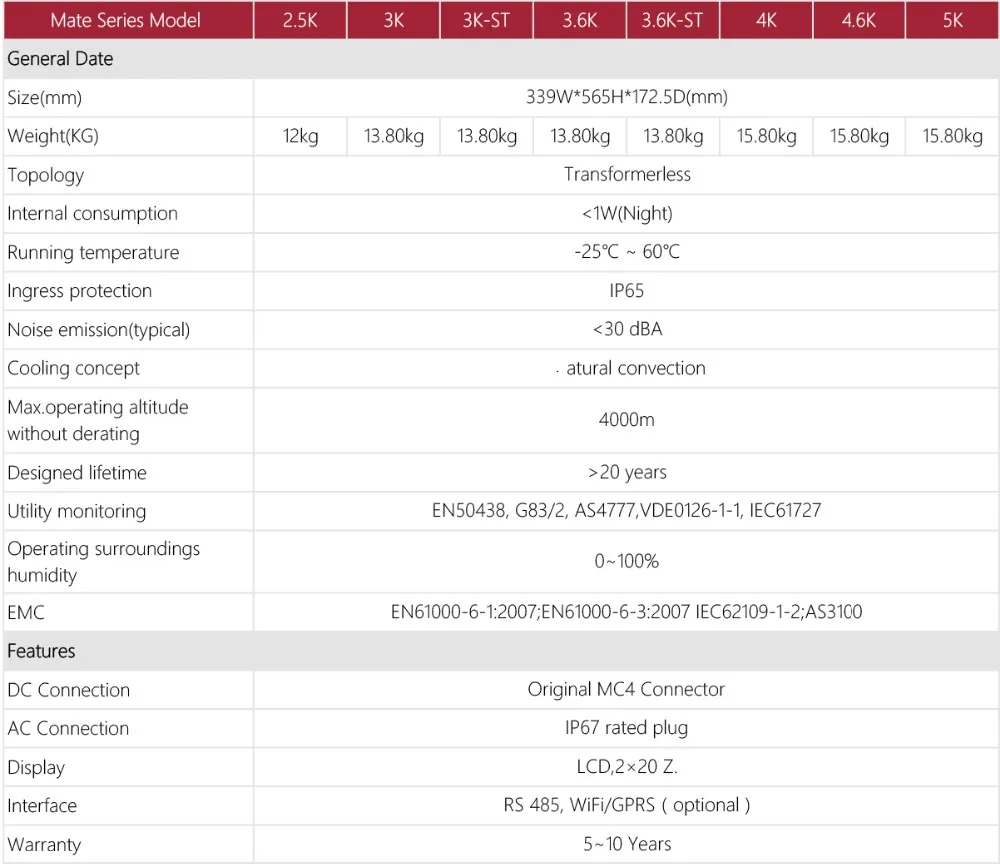

Mate Series Model2.5K3K3K-ST3.6K3.6K-ST4K4.6K5K
Energy SourcePV
Input Side(DC)
Max. input power(KW)3kW3.5kW3.5kW4.2kW4.2kW4.6kW5.3kW5.8kW
Max. DC input voltage(V)600V
Start-up DC  input voltage(V)120V
MPPT operating range(V)100-500V
Max. DC input current(A)10A+10A10A+10A18A10A+10A18A15A+15A15A+15A15A+15A
Number of MPPT/Max strings per MPPT2/22/21/22/21/22/22/22/2
Output Side(AC)
Rated output power(KW)2.5kW3kW3kW3.6kW3.6kW4kW4.6kW5kW
Max. transient power(KW)2.8kW3.3kW3.3kW4kW4kW4.4kW5kW5kW
Rated AC grid voltage(V)220/230/240V
AC grid voltage range(A)180~270V(adjustable)
Operating phaseSingle
Max. AC output current(A)13.3A15.7A15.7A16A16A21A23.8A23.8A
Reactive Power Control settings0.8 leading 0.8 lagging
Grid current THD<3%
DC injection current(mA)<20mA
Rated grid frequency(Hz)50/60Hz
Operating range utility frequency(Hz)47-52Hz or 57-62Hz(adjustable)
Efficiency
Max. efficiency0.975
Euro efficiency0.968
MPPT efficiency0.999
Protection
DC reverse-polarity protectionYes
AC short circuit protectionYes
AC output overcurrent protectionYes
Output overvoltage protection-varistorYes
Insulation resistance protectionYes
ground fault monitoringYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
integrated DC switchOptional









Company Information











Certifications
Packaging & Shipping




FAQ


1,Can I know how to choose the models?



First,you can read the DATA SHEET in the page of each products, if it is not okay;

Then, you can download our Products Catelog;

Of course, if you are interested in our product, you can Inquire Us directly for any techique questions!



2,If you can accept my own payment ways?



First, if the order less than 1 KW, We Only accept 100%TT or Paypal; But you need to pay the transfer fee;

Second, if the order bigger than 1 MW, we can talk about the payment terms;

For the others, just like the payment terms we list.



For Any Queries, Please free to contact Jack.
